Fixed Constant Oil Leveler
고정형 오일레벨러
고정형 오일 레벨러는 산업 장비의 안정적인 작동을 위해 설계된 장치로, 설정된 특정 오일 레벨을 자동으로 유지하여 장비의 성능을 최적화하고 유지 보수 작업을 간소화합니다.

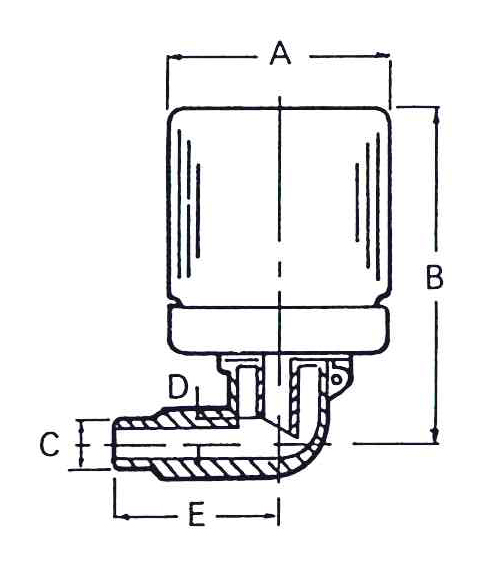

ZINC DIE-CAST BODY – PLASTIC BOTTLE
Maximum operating temperature 65 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
|---|---|---|---|---|---|---|
| ACL7567A | 51 | 82 | 1/4 BSP | 7 | 51 | 85 ml |
| ACL7568A | 51 | 82 | 1/4 NPT | 7 | 51 | 85 ml |
| ACL7572A | 57 | 87 | 1/4 BSP | 7 | 51 | 115 ml |
| ACL7573A | 57 | 87 | 1/4 NPT | 7 | 51 | 115 ml |
| ACL7577A | 64 | 94 | 1/4 BSP | 7 | 51 | 158 ml |
| ACL7578A | 64 | 94 | 1/4 NPT | 7 | 51 | 158 ml |

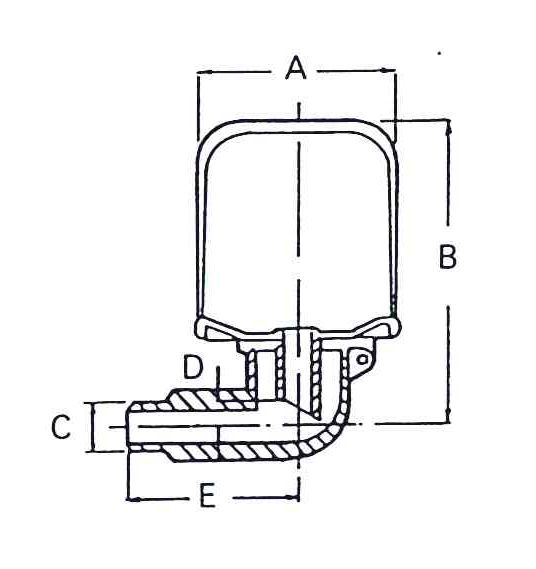

STEEL BODY – PLASTIC BOTTLE
Maximum operating temperature 65 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
|---|---|---|---|---|---|---|
| ACL7563A | 51 | 82 | 1/8 BSP | 7 | 51 | 85 ml |
| ACL7564A | 51 | 82 | 1/4 NPT | 7 | 51 | 85 ml |
| ACL7579A | 51 | 82 | 1/4 BSP | 7 | 51 | 85 ml |
| ACL7580A | 51 | 82 | 1/4 NPT | 7 | 51 | 85 ml |
| ACL7581A | 57 | 87 | 1/4 BSP | 7 | 51 | 115 ml |
| ACL7582A | 57 | 87 | 1/4 NPT | 7 | 51 | 115 ml |
| ACL7583A | 64 | 94 | 1/4 BSP | 7 | 51 | 158 ml |
| ACL7584A | 64 | 94 | 1/4 NPT | 7 | 51 | 158 ml |
BAYONET PUSH IN TYPE – STEEL BODY WITH PLASTIC BOTTLE WITH FILL CONTROL VALVE
Maximum operating temperature 65 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
|---|---|---|---|---|---|---|
| ABL7528 | 51 | 93 | 1/4 BSP | 7 | 51 | 85 ml |
| ABL7538 | 64 | 104 | 1/4 BSP | 7 | 51 | 158 ml |
BAYONET TYPE – STEEL BODY WITH GLASS BOTTLE
| Product No | A | B | C | D | E | Capacity |
|---|---|---|---|---|---|---|
| ABL7540 | 61 | 104 | 1/4 BSP | 7 | 51 | 120 ml |
ZINC DIE-CAST BODY – GLASS BOTTLE
Maximum operating temperature 100 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
|---|---|---|---|---|---|---|
| ACL7595A | 61 | 92 | 1/4 BSP | 7 | 51 | 120 ml |
| ACL7596A | 61 | 92 | 1/4 NPT | 7 | 51 | 120 ml |
STEEL BODY – GLASS BOTTLE
Maximum operating temperature 100 degree C Finish – ZINC PLATE
| Product No | A | B | C | D | E | Capacity |
|---|---|---|---|---|---|---|
| ACL7597 | 61 | 92 | 1/4 BSP | 7 | 51 | 120 ml |
| ACL7598 | 61 | 92 | 1/4 NPT | 7 | 51 | 120 ml |
SERVICE SPARES: Replacement Glass Bottles and Washers are available.
WIRE GUARD for 120 ml capacity oiler
Material – STEEL Finish – ZINC PLATE
| Product No | A mm | B mm | C mm | D mm | E mm |
|---|---|---|---|---|---|
| WG120 | 60.3 | 61.9 | 62.7 | 6.35 | 25.4 |
